High Voltage Shunt Capacitor Device

High Voltage Shunt Capacitor Device
High Voltage Shunt Capacitor Device
Send Inquiry
Product Code : 11
Brand Name : BIG PAWER ELECTRICAL
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • set
Product Specifications
  • Rated Operation Voltage
  • 3300-11000v
  • Base Material
  • Metal Base
  • Product Type
  • Control Box
  • Material
  • Metal Base
  • Surface Finish
  • Painted
  • Standard
  • IEC
  • Rated Voltage
  • 3300-11000 Volt (V)
  • Frequency (MHz)
  • 50/60 Hertz (HZ)
  • Maximum Output Current
  • 11000 Watt/Volt ( w/v)
Product Description

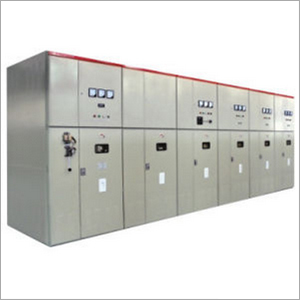

With a vision to be a pioneer in our domain, we manufacture High Voltage Shunt Capacitor Device for our diverse group of customers. It is utilized for improving voltage quality of AC power system, save energy, and reduces electric loss. They work as load balancing devices and can also be utilized as filters for harmonic oscillations having predominantly non-sinusoidal loads.  High Voltage Shunt Capacitor Device consists of capacitors, different arrestors, discharge coil, and insulating switch.

Features:

  • Efficiently manages variable voltages

  • Reliable in high voltage operations

  • Safe and economic operation

Technical Details:

Type

Rated voltage (kv)

Capacitor bank rated capacity
(kvar)

Device rated current
(A)

Wiring type

External dimensions
Width (1200mm+A) X depth X height (mm)

TBB6-900/300-AK

6

900(3 X 300)

78.7

Y

2400 X 1600 X 2650

TBB6-1000/334-AK

6

1000(3 X 334)

87.4

Y

2400 X 1600 X 2650

TBB6-1200/200-AK

6

1200(6 X 200)

105

Y

2400 X 1600 X 2650

TBB6-1500/250-AK

6

1500(6 X 250)

131

Y

2400 X 1600 X 2650

TBB6-1800/300-AK

6

1800(6 X 300)

157.5

Y

2400 X 1600 X 2650

TBB6-2000/334-AK

6

2000(6 X 334)

175

Y

2400 X 1600 X 2650

TBB10-900/300-AK

10

900(3 X 300)

47

Y

2400 X 1600 X 2650

TBB10-1000/334-AK

10

1000(3 X 334)

52.5

Y

2400 X 1600 X 2650

TBB10-1200/400-AK

10

1200(3 X 400)

63

Y

2400 X 1600 X 2650

TBB10-1500/500-AK

10

1500(3 X 500)

78.7

Y

2400 X 1600 X 2650

TBB10-1800/300-AK

10

1800(6 X 300)

94.5

Y

2400 X 1600 X 2650

TBB10-2000/334-AK

10

2000(6 X 334)

105

Y

2400 X 1600 X 2650

TBB10-2400/400-AK

10

2400(6 X 400)

126

Y

2400 X 1600 X 2650

TBB10-2700/450-AK

10

2700(6 X 450)

141.7

Y

2400 X 1600 X 2650

TBB10-3000/500-AK

10

3000(6 X 500)

157.5

Y

2400 X 1600 X 2650

Type

Rated voltage (kv)

Capacitor bank rated capacity
(kvar)

Device rated current
(A)

Wiring type

External dimensions
Width×depth×height (mm)

TBB6-300/100-AK

6

300(3×100)

26

Y

1200×1600×2650

TBB6-450/150-AK

6

450(3×150)

39.4

Y

1200×1600×2650

TBB6-600/200-AK

6

600(3×200)

52.5

Y

1200×1600×2650

TBB6-750/250-AK

6

750(3×250)

65.6

Y

1200×1600×2650

TBB6-900/300-AK

6

900(3×300)

78.7

Y

1200×1600×2650

TBB6-1000/334-AK

6

1000(3×334)

87.5

Y

1200×1600×2650

TBB10-300/100-AK

10

300(3×100)

15.7

Y

1200×1600×2650

TBB10-450/150-AK

10

450(3×150)

23.6

Y

1200×1600×2650

TBB10-600/200-AK

10

600(3×200)

31.5

Y

1200×1600×2650

TBB10-750/250-AK

10

750(3×250)

39.4

Y

1200×1600×2650

TBB10-900/300-AK

10

900(3×300)

47

Y

1200×1600×2650

TBB10-1000/334-AK

10

1000(3×334)

52.5

Y

1200×1600×2650

TBB10-1200/400-AK

10

1200(3×400)

63

Y

1200×1600×2650

TBB10-1350/450-AK

10

1350(3×450)

71

Y

1200×1600×2650

TBB10-1500/500-AK

10

1500(3×500)

78.7

Y

1200×1600×2650

Type

Rated voltage (kv)

Capacitor bank rated capacity
(kvar)

Device rated current
(A)

Wiring type

External dimensions
Width (1200mm+A)×depth×height (mm)

TBB6-1800/300-BL

6

1800(6×300)

157.5

Y-Y

2400×1600×2650

TBB6-2000/334-BL

6

2000(6×334)

175

Y-Y

2400×1600×2650

TBB6-2400/200-BL

6

2400(12×200)

210

Y-Y

3600×1600×2650

TBB6-3000/250-BL

6

3000(12×250)

262.4

Y-Y

3600×1600×2650

TBB6-3600/300-BL

6

3600(12×300)

315

Y-Y

3600×1600×2650

TBB6-4000/334-BL

6

4000(12×334)

350

Y-Y

3600×1600×2650

TBB6-4500/250-BL

6

4500(18×250)

393.6

Y-Y

4800×1600×2650

TBB6-5400/300-BL

6

5400(18×300)

472.4

Y-Y

4800×1600×2650

TBB6-6000/334-BL

6

6000(18×334)

525

Y-Y

4800×1600×2650

TBB10-1800/300-BL

10

1800(6×300)

95

Y-Y

2400×1600×2650

TBB10-2000/334-BL

10

2000(6×334)

105

Y-Y

2400×1600×2650

TBB10-2400/400-BL

10

2400(6×400)

126

Y-Y

2400×1600×2650

TBB10-3000/500-BL

10

3000(6×500)

157.5

Y-Y

2400×1600×2650

TBB10-3600/300-BL

10

3600(12×300)

189

Y-Y

3600×1600×2650

TBB10-4000/334-BL

10

4000(12×334)

210

Y-Y

3600×1600×2650

TBB10-4800/400-BL

10

4800(12×400)

252

Y-Y

3600×1600×2650

TBB10-5400/450-BL

10

5400(12×450)

283

Y-Y

3600×1600×2650

TBB10-6000/500-BL

10

6000(12×500)

315

Y-Y

3600×1600×2650

TBB10-7200/400-BL

10

7200(18×400)

378

Y-Y

4800×1600×2650

TBB10-8100/450-BL

10

8100(18×450)

425

Y-Y

4800×1600×2650

TBB10-9000/500-BL

10

9000(18×500)

472

Y-Y

4800×1600×2650

Trade Information
  • FOB Port
  • china
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Cash in Advance (CID)
  • Supply Ability
  • 1000 Per Year
  • Delivery Time
  • 60-90 Days
  • Main Export Market(s)
  • Africa, Middle East, South America, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • IEC standards
